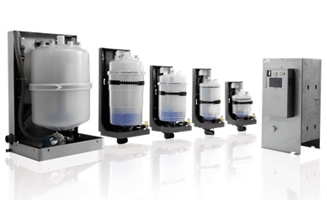

Models
|
KUE*3*
|
KUE*4*
|
|
Code (*)
|
|
- without cylinder, without metallic housing; single package
|
KUE0300000
|
KUE0400000
|
|
- with 24 Vac fill valve, without cylinder, with metallic housing;
single package
|
KUE(S/T)30CC00
(24Vac drain valve)
KUE(S/T)300U00/0B00
(230
Vac 50/60Hz
drain pump)
|
-
|
|
- with cylinder, with and without metallic housing; single package
|
KUE(S/T)3*00
|
KUET4*0000
|
|
- multiple package(without metallic housing)
|
KUE*3*MP*: 12 pcs
|
-
|
|
Rated steam flow(modulation: 20 to 100%)
|
9/10/15/18 kg/h
(20/22/33/40 lbs/hr)
KUES3*: 0 to 500 Pa
KUET3*:
0 to 600 Pa
|
25/35/45 kg/h
(55/77/100 lbs/hr)
0 to 2300 Pa
|
|
Supply water:
|
|
-
inlet
flow
|
1.2
l/min(0.32
gpm)
|
4.0
l/min(1.1
gpm)
|
|
-
solenoid
valve(connection
on
the
bottom)
|
24
or
230
Vac
15
VA
50/60
Hz
-
3/4”
G
male
|
|
-
temperature
|
1
to
40
°C
(34
to
104
°F)
|
|
-
pressure
|
1
to
8
bar
(14.5
to
116
PSI,
0.1
to
0.8
MPa)
|
|
Water drain:
|
|
-
flow
and
temperature
|
drain
valve:
4
l/min,
100
°C
(1.1
gpm,
212
°F)
drain
pump:
10
l/min,
100
°C
(2.7
gpm,
212
°F)
|
22.5
l/min,100
°C
(6
gpm,
212
°F)
|
|
-
device
|
solenoid
valve
24
Vac
15
VA
50/60
Hz
or
pump
at
24
or
230
Vac
85
VA
50/60
Hz
|
pump
230
Vac
85
VA
50/60
Hz
|
|
-
connection(bottom;
except
for
KUET4*)
|
-
90
deg
O.D.
32
mm
(1.26
in)
-
straight
O.D.
32
mm
(1.26
in)
-
90
deg
O.D.
23
mm
(0.91
in)
-
optional
for
some
models
-
straight
O.D.
23
mm
(0.91
in)
-
not
available
for
some
models
|
-
on
left
side
O.D.
40
mm
(0.16
in)
|
|
Protection
index(CEI
EN
60529)
|
IP00
|
|
Flame-retardant
rating
(UL
94)
|
HB
|

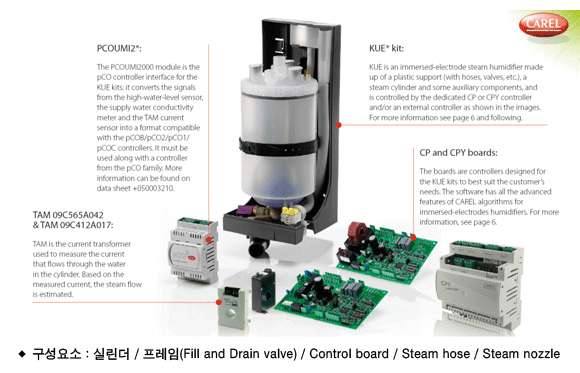

OEM Kit 제품 특징
